Router Mortise & Slot Jig with Twin Aluminum Rails for Trim Routers
Stop Fighting a Wandering Router: Cut Mortises and Slots Exactly Where You Marked Them

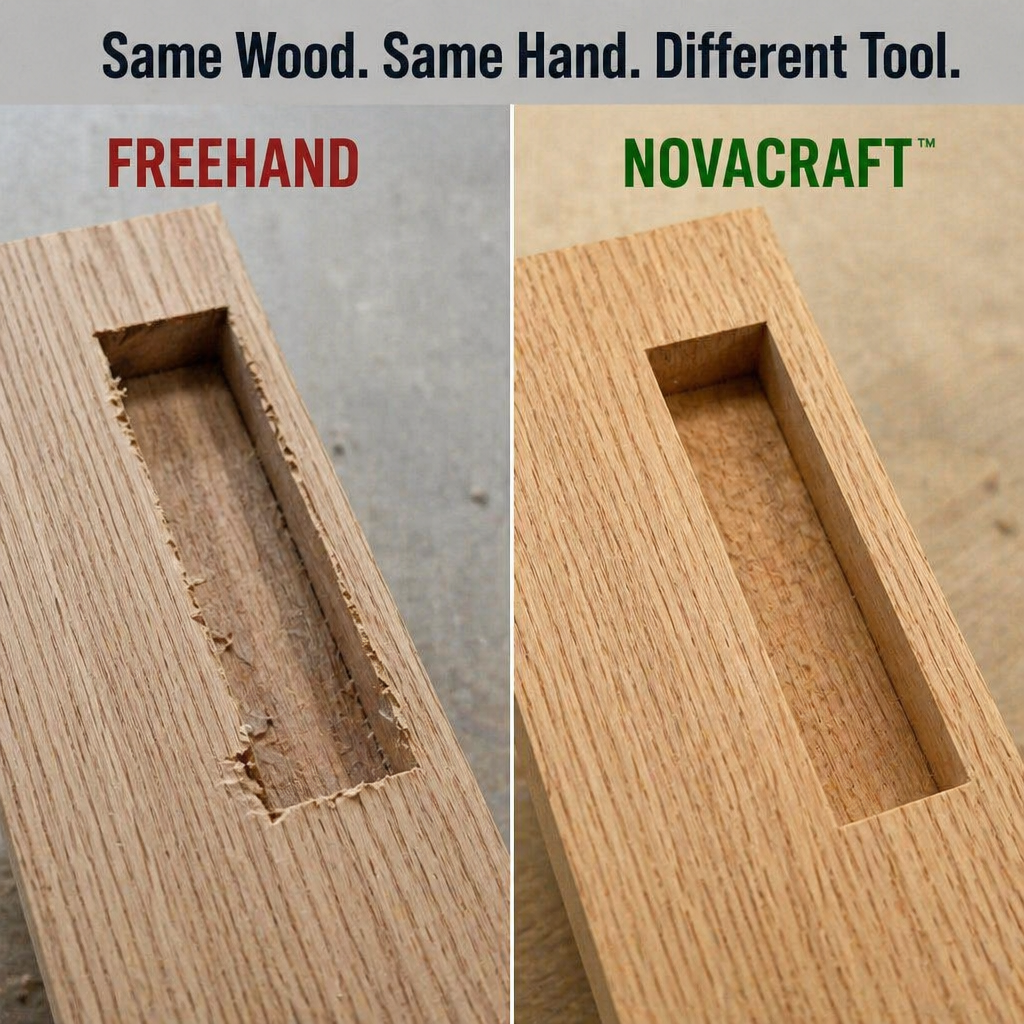

Freehand routing is where good projects go wrong. This Router Mortise & Slot Jig holds your trim router between two aluminum guide rails, keeps the bit on a perfectly parallel line, and lets you cut clean mortises, grooves, and concealed-fastener slots along the edge of any board with no wobble, no chip-out, and no redoing the work.
Crooked Mortises Are a Setup Problem, Not a Skill Problem
You measured, you marked, and you started the cut cleanly. Two inches in, the router pulled, the bit drifted, and now a piece of stock you can't replace has a sloppy mortise. Compact trim routers have no real edge guide built in, and most aftermarket guides are loose-fitting plastic that slips as soon as you push.

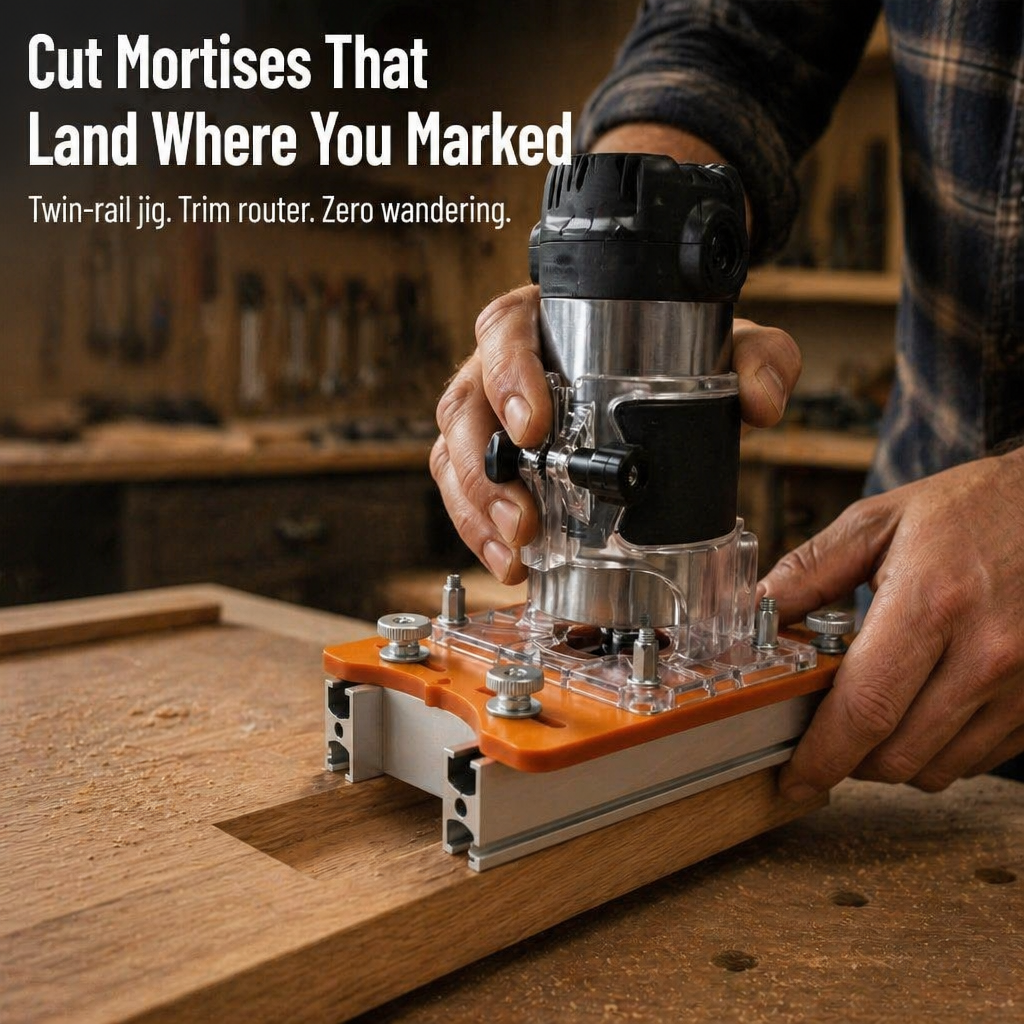

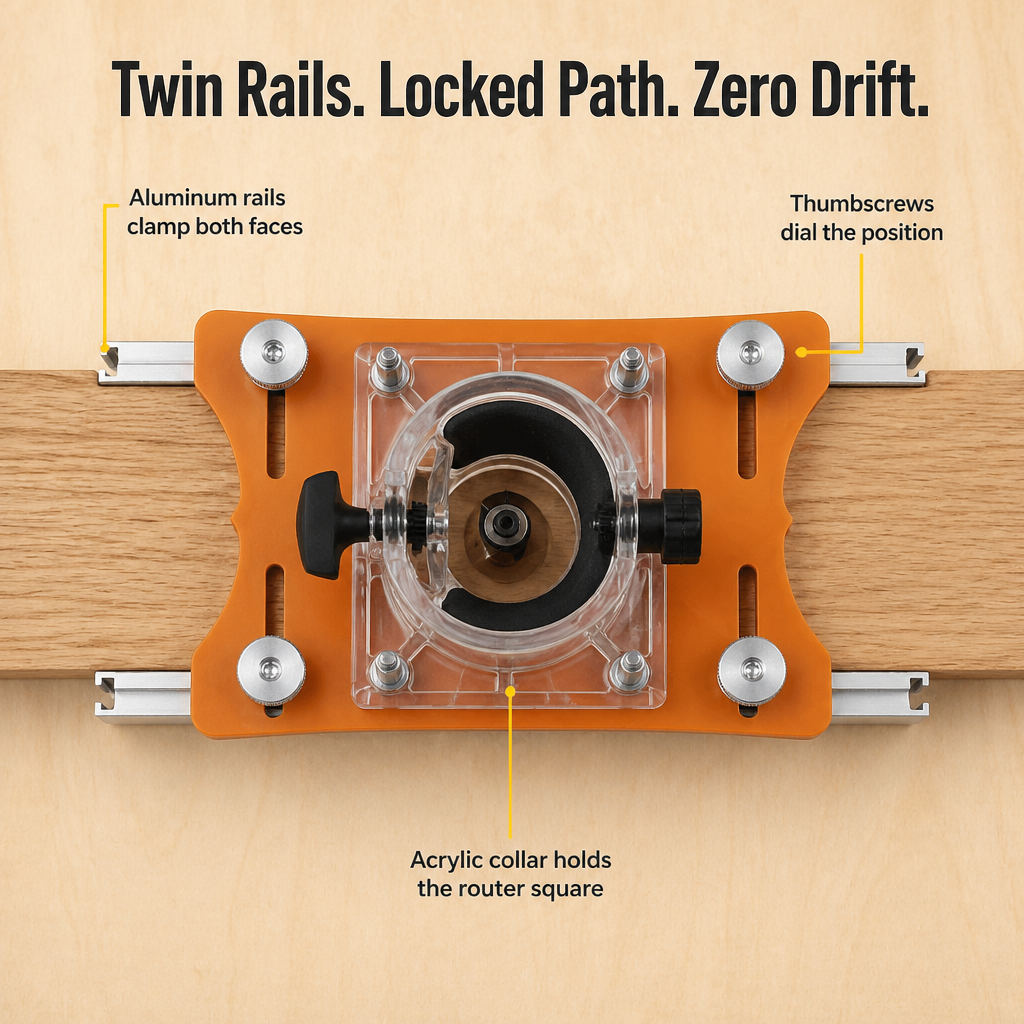

➤ Twin Aluminum Rails Lock the Cut Line: Two anodized aluminum guides clamp firmly against both faces of the workpiece, so the router tracks dead parallel from start to finish with no drift and no skating across the grain.
➤ Four Thumbscrews Set the Slot Position: Tighten the knurled thumbscrews by hand to fine-tune the bit's distance from the edge. Cut centered mortises, off-center grooves, or fastener slots from the same jig, with no shims and no math.
➤ Clear Acrylic Base for an Open View of Your Layout: See your pencil line, the bit, and your stop marks through a 1/4-inch acrylic plate, and plunge in exactly where you intended every time.

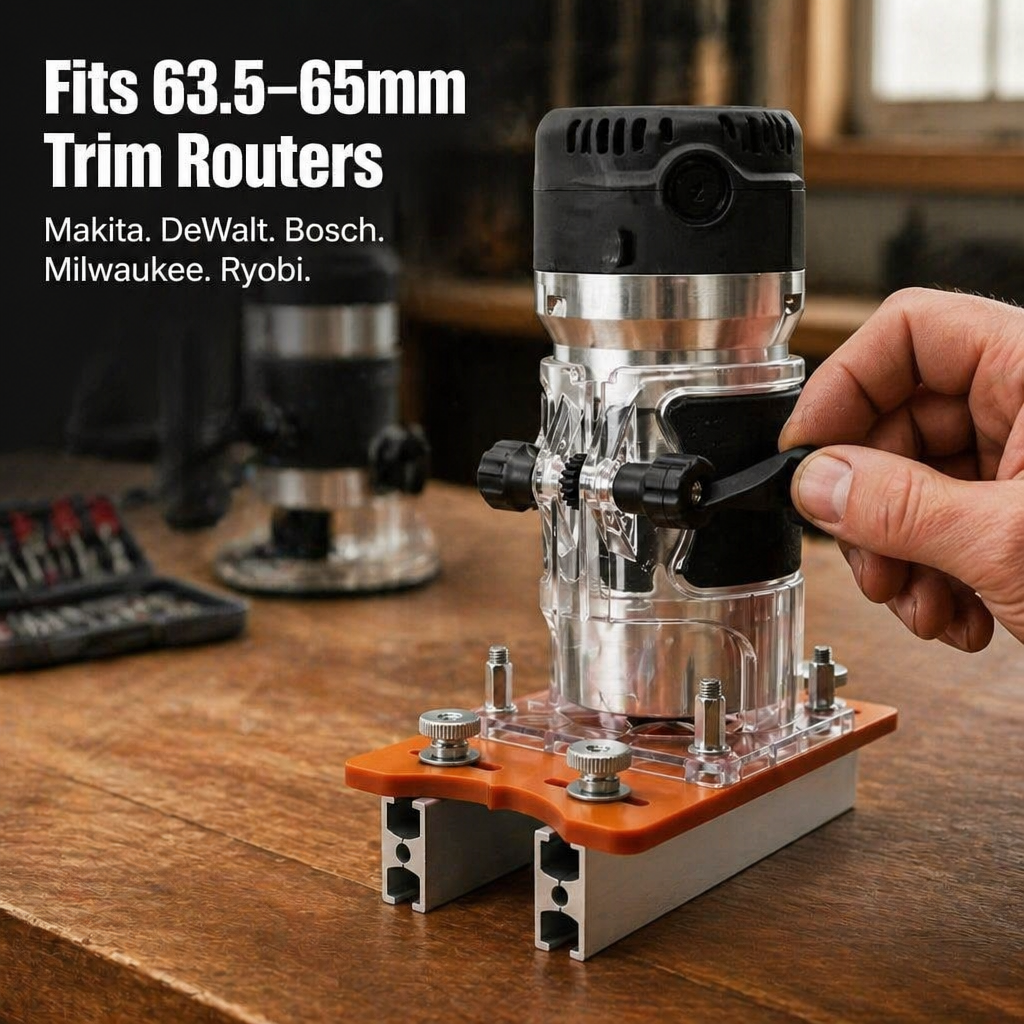

Fits Any 65mm Trim Router, No Drilling or Modifications
If your compact router barrel measures between 63.5mm and 65mm, which covers most Makita, DeWalt, Bosch, Milwaukee, and Ryobi palm and trim routers, the jig slides on, locks in, and has you cutting in under two minutes. The included 1/4-inch shank straight bit (11mm cutting diameter, 30mm cutting length) is sized for hinge mortises, biscuit slots, and 8mm/10mm concealed-fastener channels right out of the box.
Other guides flex when you push on them. These aluminum rails sit flush, grip the workpiece firmly, and let you lean into the router without the jig walking off the edge.
Why Hobbyists and Pros Are Replacing Their Old Edge Guides
Woodworkers who had given up on freehand mortising, and who used to reach for a chisel for every hinge, set this jig once and turn out joinery they would normally pay a cabinet shop to do. As one customer put it: "Wish I'd bought this before I started the kitchen. Took six bad mortises down to zero."
Cuts You Used to Avoid, Finished in Minutes
✓ Repeatable Hinge Mortises: Set the rails once and cut every door in the run identically, with no template swapping and no measuring twice per door.
✓ Concealed-Fastener Slots Done Right: Cut clean Z-clip and panel-connector channels for flat-pack furniture and edge-joined panels, the kind of joinery that once called for an expensive dedicated jig.
✓ Edges That Look Shop-Built: The anodized aluminum rails won't bend, the knurled steel thumbscrews stay tight under vibration, and the acrylic base shrugs off knocks and resin.
How to Use It: Three Steps, Under Two Minutes to the First Cut
Step 1: Drop your trim router into the clear acrylic collar and hand-tighten the side clamp until the barrel is locked in place.
Step 2: Slide the twin aluminum rails against both faces of the workpiece and lock the four thumbscrews. The bit is now tracking on a fixed line.

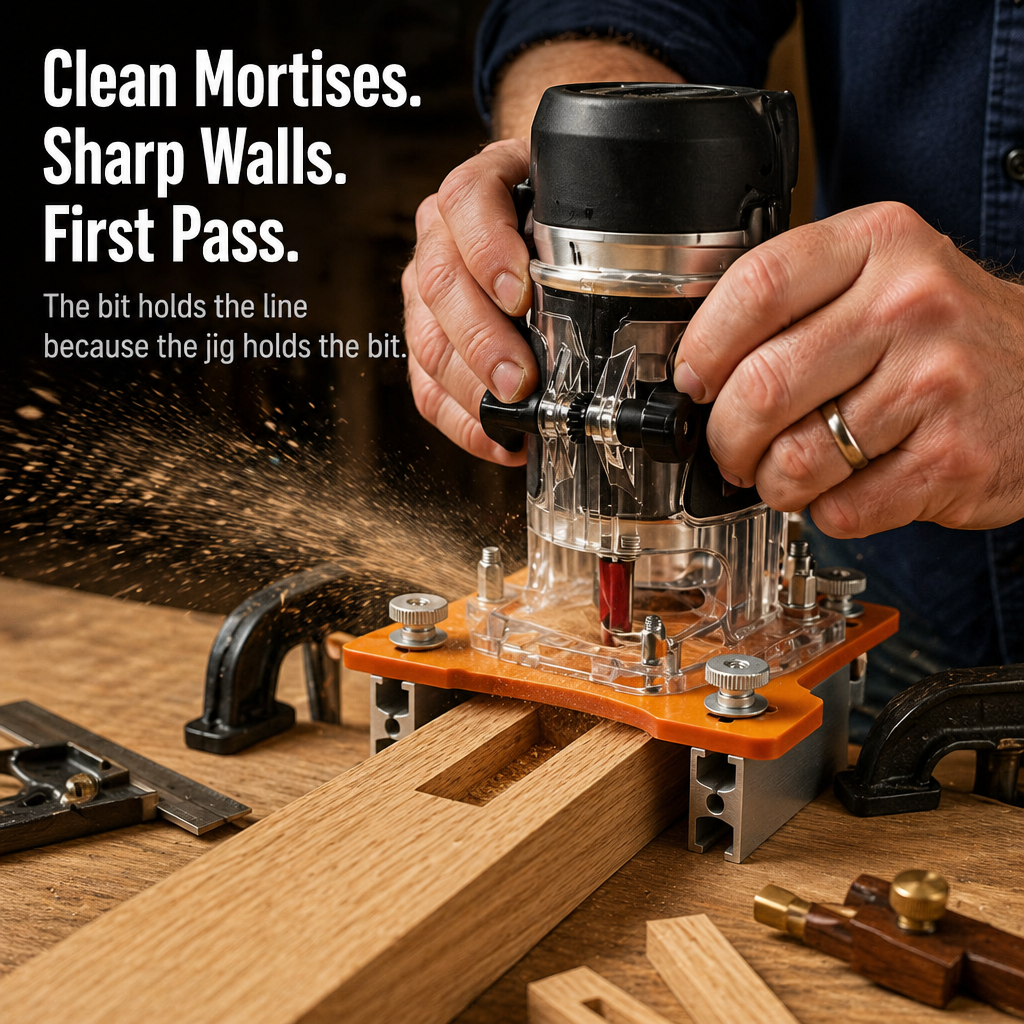

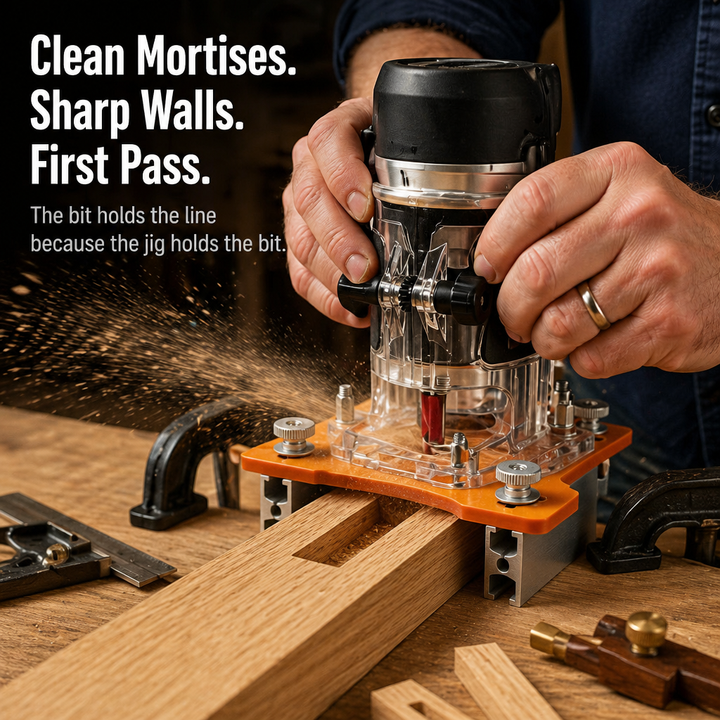

Step 3: Power on, plunge to depth, and run the router from one stop mark to the other. Lift it off and you have a mortise that fits the first time.
| Mortise & Slot Jig | Freehand / Chisel | Generic Plastic Edge Guides |
|---|---|---|
| Tracks dead parallel along the edge with twin aluminum rails | ❌ Wanders, depends on a steady hand | ❌ Single rail, flexes under pressure |
| Cuts mortises and concealed-fastener slots from one setup | ❌ A different tool for each cut | ❌ Mortising only, no fastener slots |
| Fits 63.5–65mm trim routers, including Makita, DeWalt, Bosch, and Milwaukee | ❌ N/A | ❌ Often router-specific and brand-locked |
Specifications: What You Really Need to Know

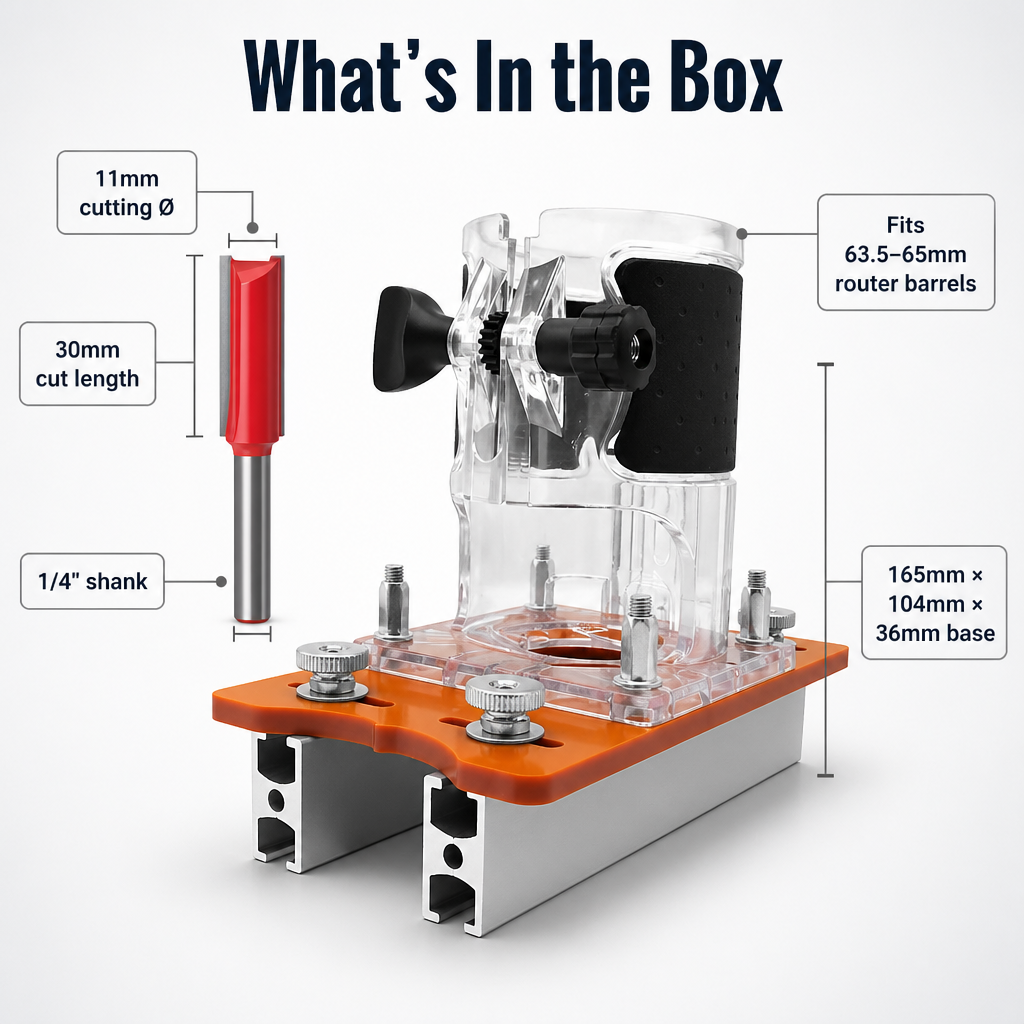

- Type: Dual-function router mortise & slot jig
- Functions: Edge mortising and slotting, plus concealed-fastener slot cutting
- Router Compatibility: 63.5–65mm (2.5"–2.56") barrel diameter, fits most compact, trim, and palm routers
- Base Dimensions: 165mm × 104mm × 36mm (6.5" × 4.09" × 1.42")
- Included Bit: 1/4" (6.35mm) shank straight bit, 11mm cutting diameter, 30mm cutting length, 60mm overall
- Build: Anodized aluminum rails, clear acrylic collar, knurled steel thumbscrews
Your Questions, Answered
Will it fit my specific router?
If your trim or palm router has a barrel between 63.5mm and 65mm, which covers the Makita RT0700/RT0701, DeWalt DCW600/DWP611, Bosch Colt PR20EVS, Milwaukee 2723-20, and most Ryobi palm routers, it slides right in. If you're unsure, measure your barrel before ordering.
What kinds of cuts can I make with it?
Hinge mortises, biscuit and domino-style slots, edge dadoes for shelf supports, channels for sliding tracks, and slots for invisible Z-clip fasteners on flat-pack panels. The included 11mm bit handles the most common slot widths; swap in other 1/4" shank straight bits for narrower or wider cuts.
Is it strong enough for hardwood, or only pine and plywood?
The aluminum rails and steel thumbscrews handle oak, walnut, maple, and hardwood plywood without flexing. On dense hardwoods, take two passes at depth to keep the bit cool and the cut clean.
How long does the first setup take?
Drop the router in, clamp the rails to the workpiece, set the four thumbscrews, and plunge to depth. Once you've done it twice, it takes under two minutes from the box to the first mortise.
Built Like the Jig You'd Make Yourself, If You Had a CNC and a Day Off

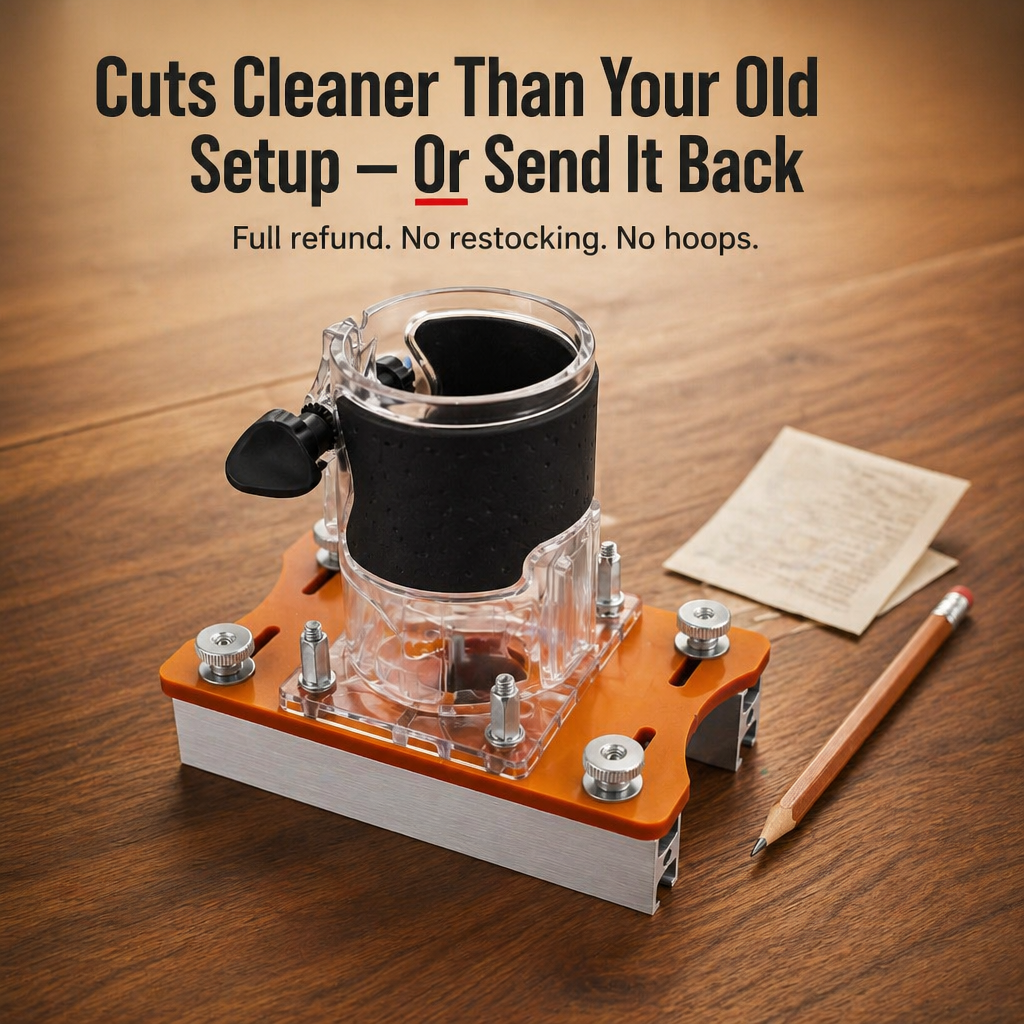

If this jig doesn't give you cleaner, straighter mortises than your current setup on your very first project, send it back for a full refund. There is no restocking fee, and you don't have to prove how you cut your samples.
